3.3 Bottom View

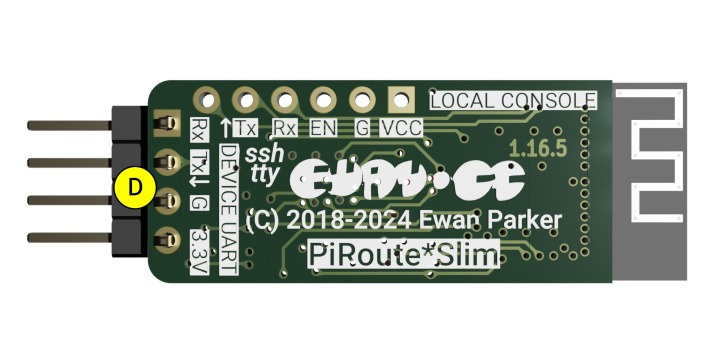

This is the bottom side view of the PiRoute*Slim.

D

Connect the UART of the device you wish to access via SSH here. The PiRoute*Slim can be powered with a 3.3V DC supply from the same connection. Note that typically the Rx of the device connects to the Tx of the PiRoute*Slim, and the Tx of the device connects to the Rx of the PiRoute*Slim. The arrow adjacent to the Tx connection on the PiRoute*Slim denotes the direction of the data flow.
